Key Facts

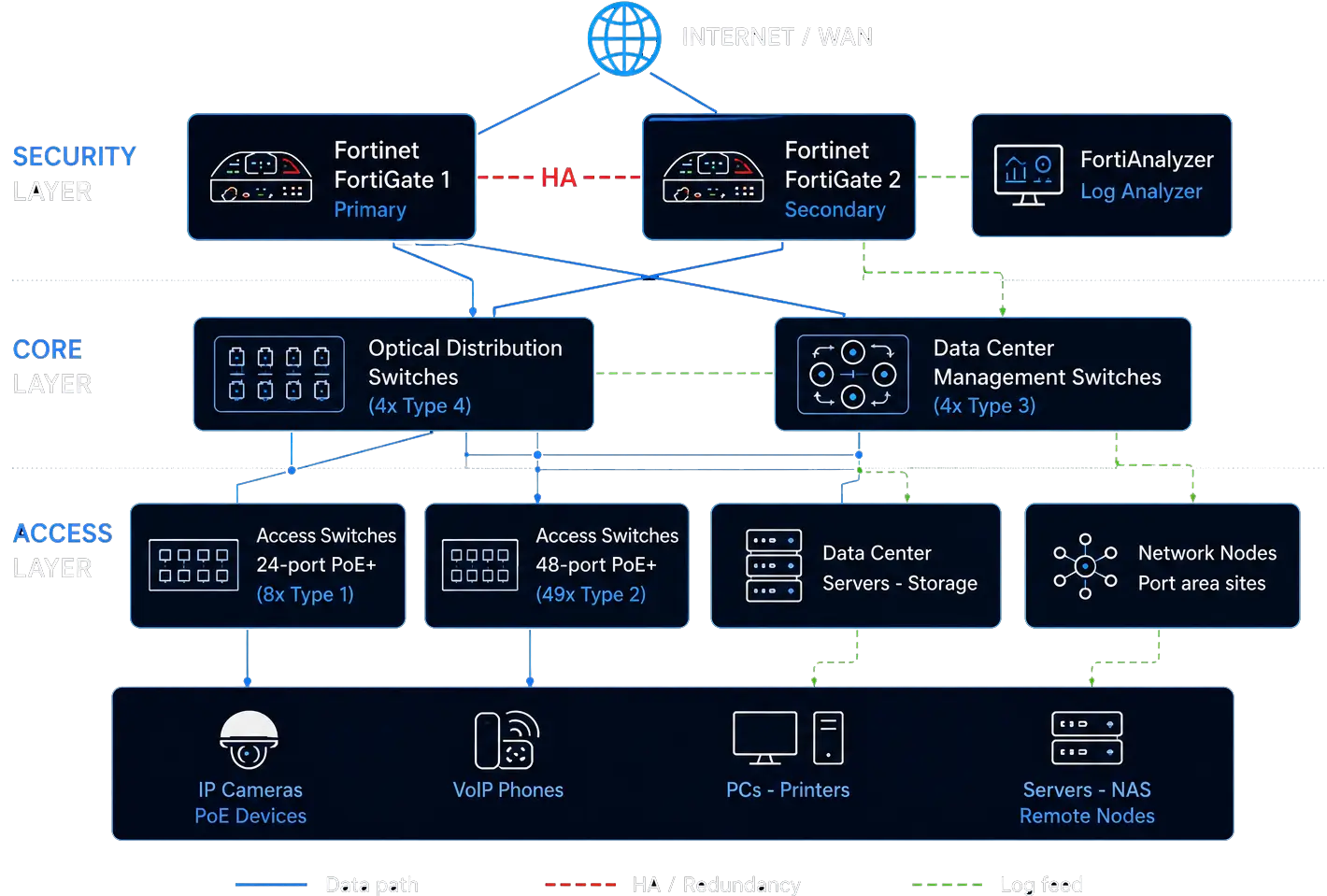

NETWORK ARCHITECTURE – STAR TOPOLOGY

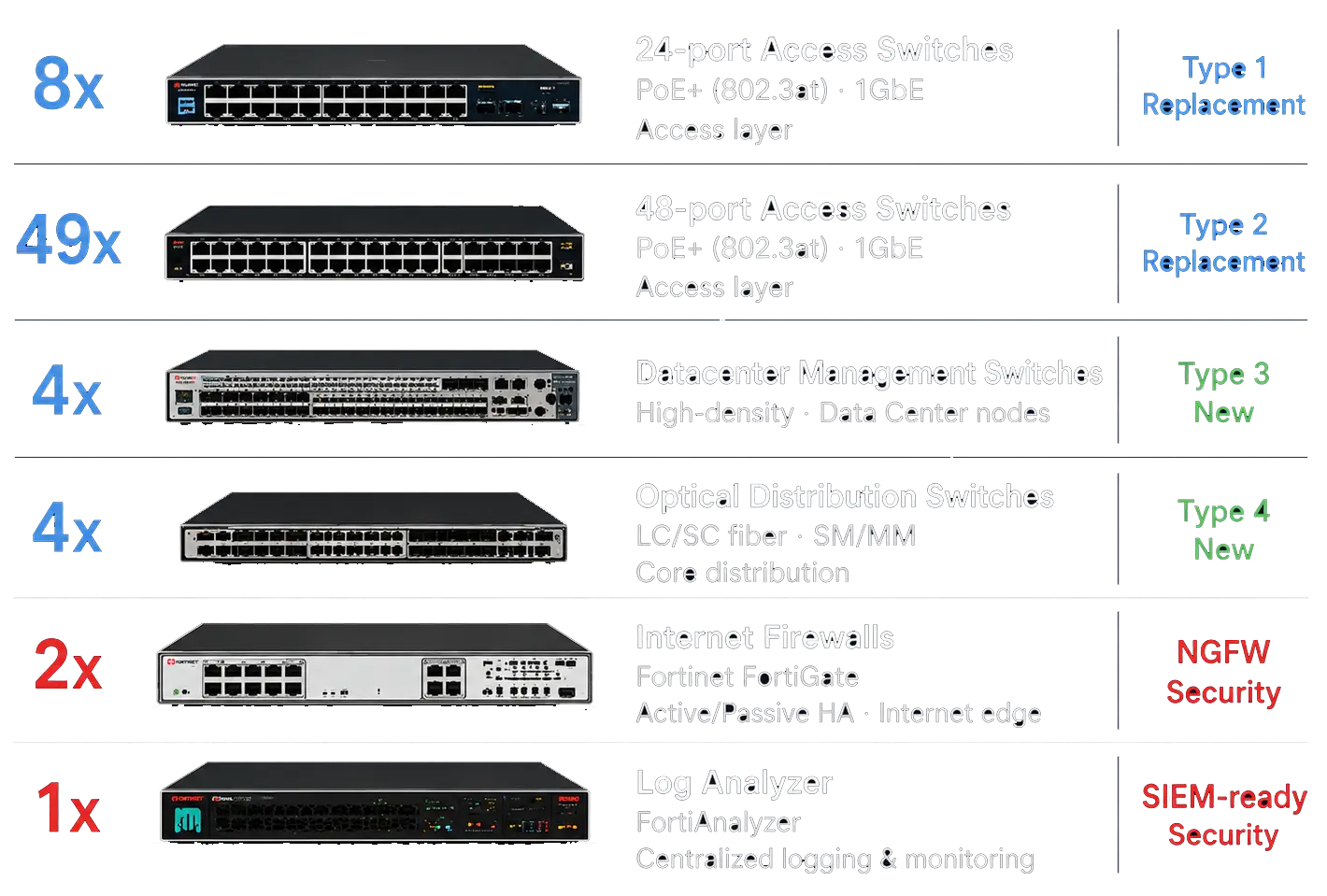

EQUIPMENT
Implementation phases
Site Survey & Design
Mapping of existing infrastructure, Fiber panels, Rack space & power. Logical / physical topology design
Security Layer
Installing FortiGate HA pair + FortiAnalyzer. Configure firewall rules VPN & logging policies
Core & Distribution Layer
Deployment 4x Optical Distribution Switches (Type 4), +4x DC Management Switches (Type 3),
Fiber patching & testing
Access Layer Rollout
Rolling replacement of 57x access switches (8 type 1 + 49 type 2)
per network node.
Zero-downtime migration
Testing & Handover
End-to-end testing, monitoring setup configuration, as-built documentation, training and technical support
Technical remarks
Fiber Reuse
Utilization of existing SM/MM fiber panels with LC/SC connectors – zero cost civil works expansion
PoE+ Continuity
Full compatibility
IEEE 802.3at (PoE+) – IP Cameras, VoIP phones, Wi-Fi APs continue without changes
HA Firewall Design
2 FortiGate deployed as Active/Passive cluster – zero-downtime to failure, automatic failover
Contractor Scope
The contractor shall provide all additional racks, patch panels, SFP modules, fiber optics and Ethernet terminations
The operational impact
Performance & Availability
Improved throughput, reduced latency and high uptime across all network nodes of the port
Security Enhancement
NGFW perimeter protection, centralized logging for FortiGate + FortiAnalyzer
Future Scalability
Modular architecture that supports future development without reconfiguring the core
Business
Continue
Zero-downtime migration and high availability with HA Firewall Cluster & redundant design
Integrated
Project
Full supply, installation, configuration, testing and documentation from Active
ABOUT THE PROJECT
Building Resilient Port Operations
The project focused on creating a modern and resilient digital infrastructure that enhances the availability, security and continuity of critical port operations. Active’s approach supported an environment designed for steady growth, operational reliability and long-term value.
